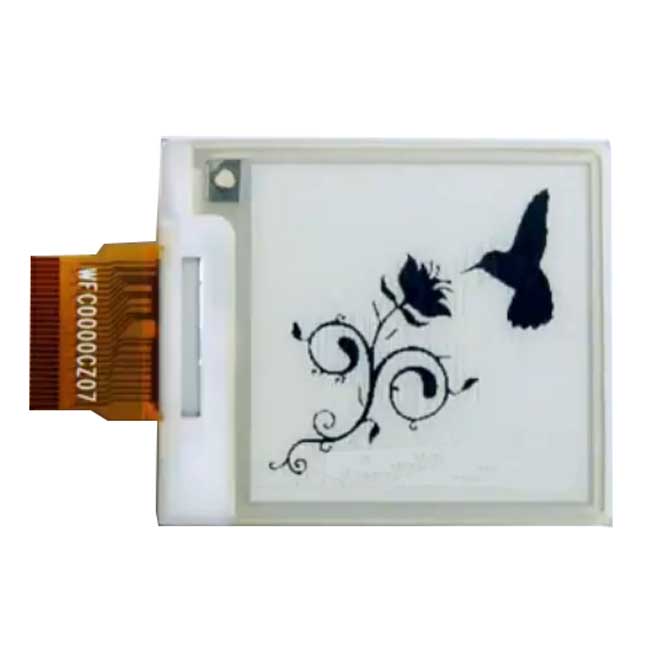

200x200 SPI interface e-ink display 1.54inch with IC SSD1675
The display is a TFT active matrix electrophoretic display, with interface and a reference system design.
The 1.54” active area contains 200×200 pixels, and has 1-bit black/white and highlight red full display capabilities.
An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel. Application
Electronic Shelf Label System.

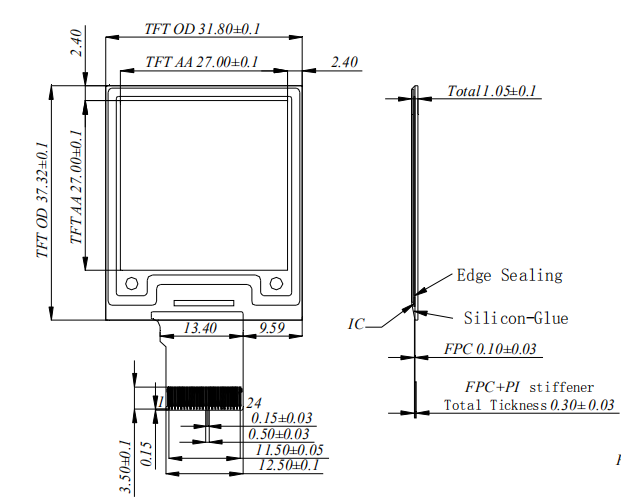

| Outline Dimension(mm) | 31.8(H)×37.3(V) ×1.05(D) | Active Area(mm) | 27.6(H)×27.6(V) |
| Resolution | 200(H)×200(V) | Pixel Pitch(mm) | 0.138×0.138 |
| Color | Red black and white | Weight | 2.18±0.5 |
FAQ
1.How much the transportation freight of samples?
A: The freight depends on total weight and volume and your address.
2: How long can I expect to get the sample?
A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.
3: When can I get the datasheet?
A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately
Our factory
E Ink (electronic ink) is a popular type of electronic paper display technology, characterized by high visibility and contrast, a wide viewing angle and low power requirements.
It is currently available commercially in grayscale and color and is commonly used in mobile devices such as e-readers, and, to a lesser extent, digital signage, mobile phones, smartwatches, electronic shelf labels and architecture panels.
